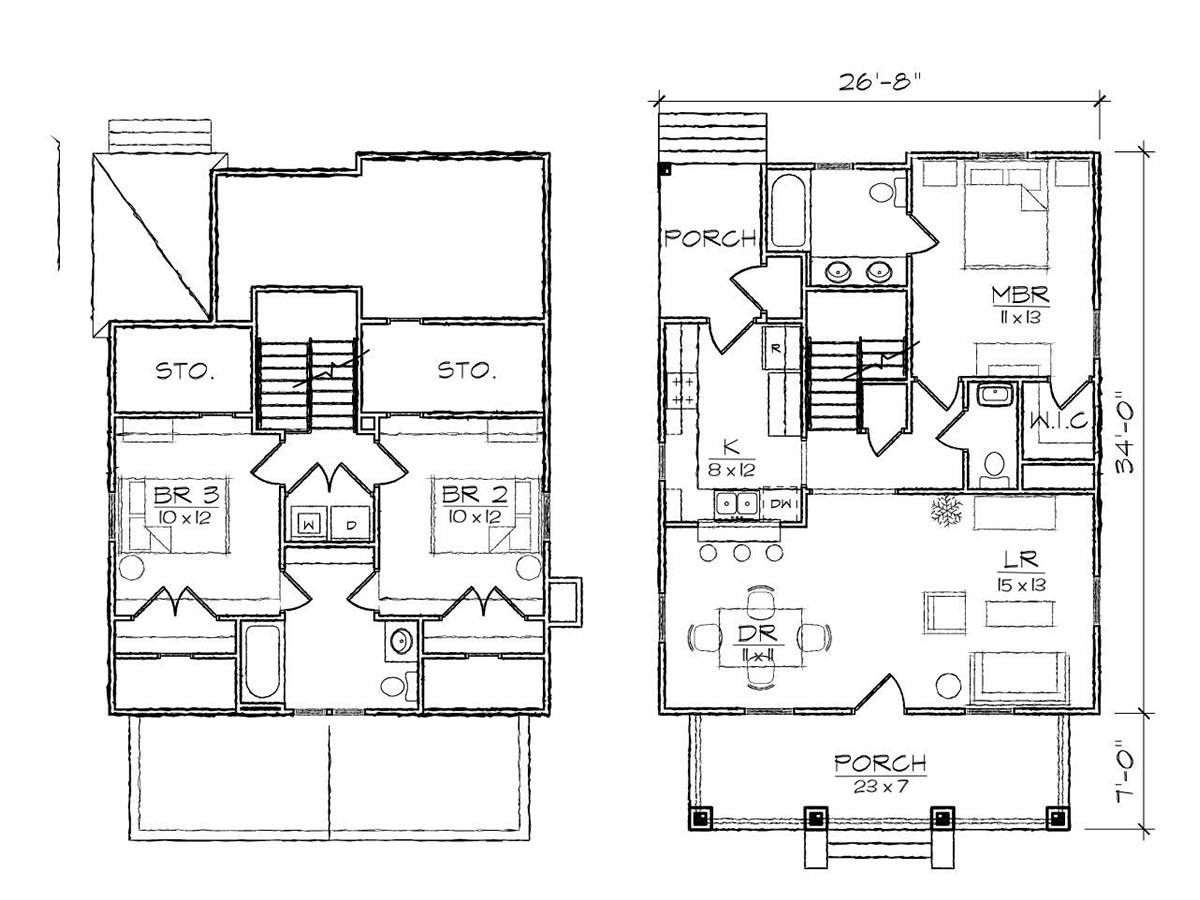

This one and one half bungalow style home of 1250 square feet features a large open living and dining area and a first floor master bedroom suite. The plan includes a total of three bedrooms, two and a half bathrooms, a laundry room, and an L-shaped galley kitchen with a breakfast bar that opens to the dining room. The second floor offers two bedrooms, a shared full bathroom, the laundry area, and abundant easily accessible storage.
The Arts and Crafts inspired exterior offers a side to side gabled roof and a front shed dormer, a gabled front porch roof, covered rear porch, and exterior storage room. At 26’-8” it is ideally suited for a narrow lot.
Please see ‘Purchase Options’ to view pricing from for our Single Family House Plan designs.
For custom designs or modifications, please call us for a design quote at 919-834-3600. We will be glad to assist you with your inquiry.
Deliverables
Our catalog designs consist of full construction drawings including: dimensioned and noted floor plans; exterior elevations; foundation, floor, ceiling and roof framing plans; roof truss profiles; building and wall sections; and typical construction and energy efficiency details. View a sample of our Standard Construction Drawings.
Orders without modifications can be processed and completed within 3-5 business days after payment is received.
Plumbing, mechanical and electrical plans are not included, however we can produce a basic electrical layout.
Purchase Options
Please feel free to contact us for pricing options and alternatives.
Catalog Designs
We also offer a 25% discount on License Fees for non-profit organizations.
Includes a 24″x36″ PDF of construction drawings and the license to build a TightLines Designs catalog design indefinitely. An unlimited-use license may not be purchased incrementally.
Includes an 11″x17″ PDF with basic design information for a TightLines Designs catalog design, including exterior elevations and dimensioned floor plans. Study sets are useful for obtaining preliminary cost estimates but do not include structural design or specifications needed for construction and final pricing.
Single Family Houses – $200
Duplexes & Townhouses – Call for Quote
Garages – Call for Quote
Modification Options
For custom designs or modifications, please call us for a design quote.
Home plans that are Designed to Earn the ENERGY STAR can be used nationwide and are approved by a certified HERS rater. Construction drawings sets include the details, specifications, and checklists required in the process of acquiring the ENERGY STAR.
