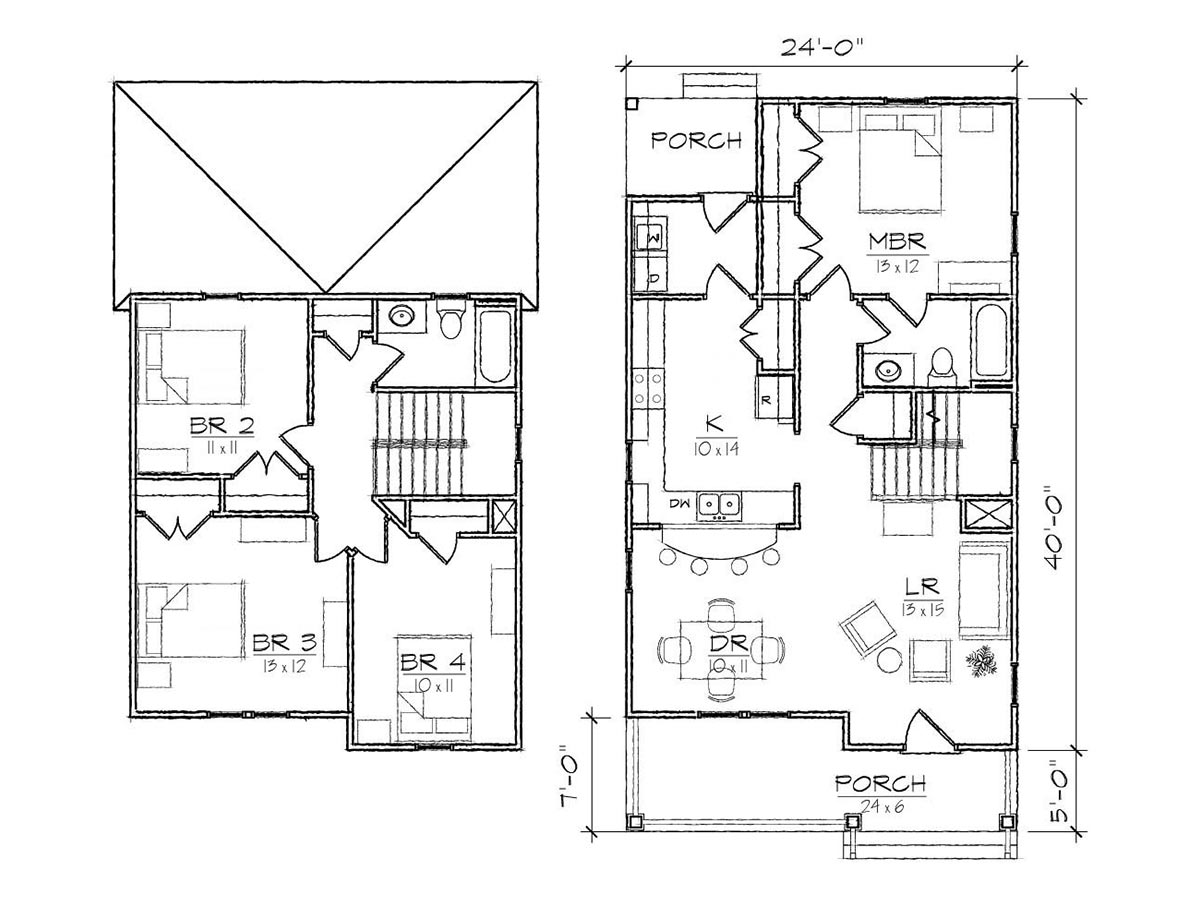

This two story turn of the century style house of 1470 square feet features a large, open living room and a spacious kitchen with a breakfast bar that opens to the dining area.
The first floor also has a separate laundry room, ample storage, and a private master bedroom suite. The second floor includes three bedrooms and one full bathroom.

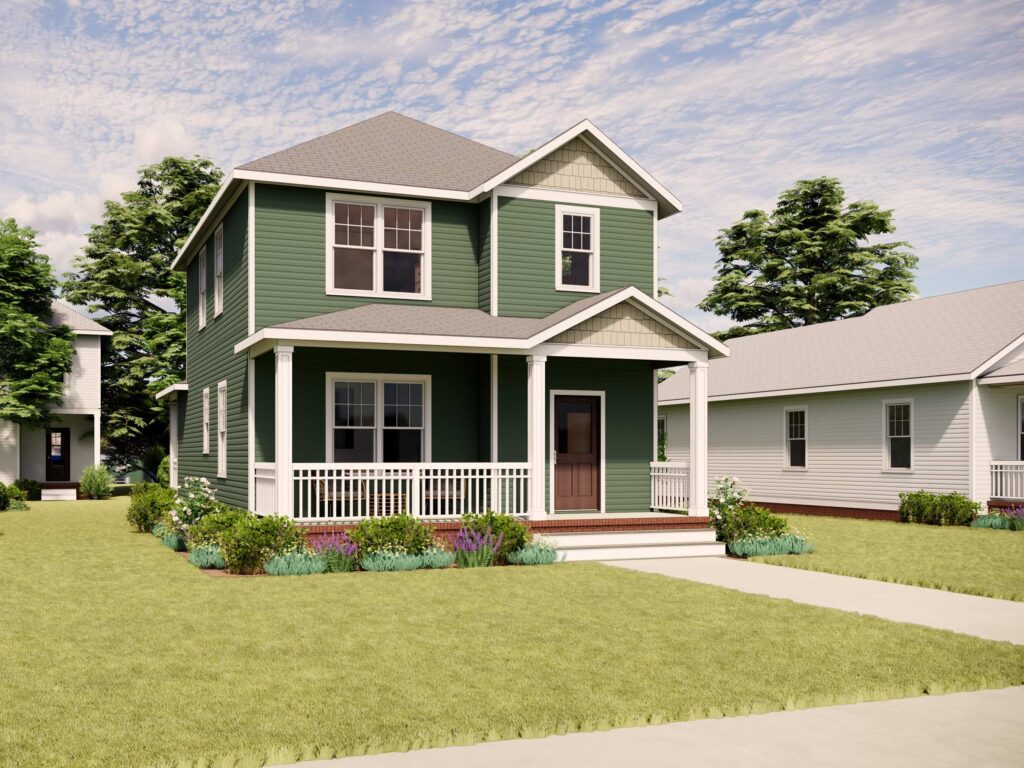

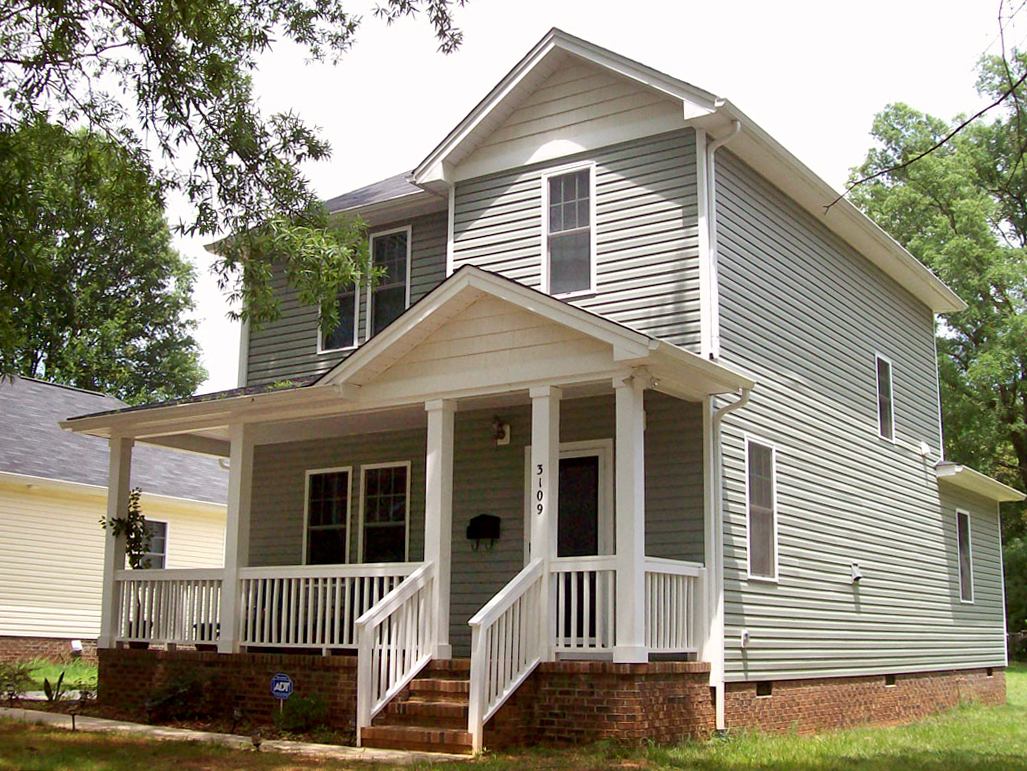

The historically inspired exterior offers a hip roof and gable with accent shingles, a full front porch with a hip roof and gabled entry, and a covered rear porch. At 24’-0” in width it is ideally suited for a narrow lot.
Please see ‘Purchase Options’ to view pricing from for our Single Family House Plan designs.
For custom designs or modifications, please call us for a design quote at 919-834-3600. We will be glad to assist you with your inquiry.
Deliverables
Our catalog designs consist of full construction drawings including: dimensioned and noted floor plans; exterior elevations; foundation, floor, ceiling and roof framing plans; roof truss profiles; building and wall sections; and typical construction and energy efficiency details. View a sample of our Standard Construction Drawings.
Orders without modifications will be processed and completed as soon as possible after payment is received.
Plumbing, mechanical and electrical plans are not included, however we can produce a basic electrical layout.
Purchase Options
Please feel free to contact us for pricing options and alternatives.
Catalog Designs
We also offer a discount on License Fees for non-profit organizations. Please calls us for more information.
Includes a 24″x36″ PDF of construction drawings and the license to build a TightLines Designs catalog design indefinitely. An unlimited-use license may not be purchased incrementally.
Includes an 11″x17″ PDF with basic design information for a TightLines Designs catalog design, including exterior elevations and dimensioned floor plans. Study sets are useful for obtaining preliminary cost estimates but do not include structural design or specifications needed for construction and final pricing.
Single Family Houses – $250
Duplexes (not townhouses) – $450
Garages – $200
Modification Options
For custom designs or modifications, please call us for a design quote.
